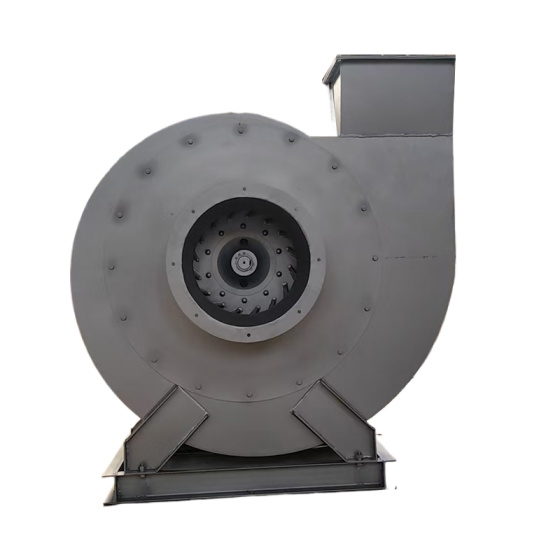

The blower is a single-suction type, usually with 13 models: 24, 4.5, 5, 5.6, 6.3, 7.1, 8, 9, 10, 11.2, 12.5, 14, and 16. Blowers are usually made in two types: right-hand and left-hand rotation. Viewed from the motor end, the impeller rotating clockwise is called a right-hand blower, indicated by “right”, and the impeller rotating counterclockwise is called a left-hand blower, indicated by “left”. The outlet position of the blower is indicated by the outlet angle of the casing. Both “left” and “right” can be made into six angles: 0°, 45°, 90°, 135°, 180°, and 225°. The transmission methods…
9-19 and 9-26 high-pressure centrifugal blowers are generally used for forging furnaces and high-pressure forced ventilation. They can also be widely used for conveying materials, air, and gases that are non-corrosive, non-self-igniting, non-explosive, non-volatile, and non-viscous. The medium temperature generally does not exceed 50℃ (higher temperature not exceeding 80℃), and the content of dust and hard particles in the medium is not more than 150mg/m³. 3。
