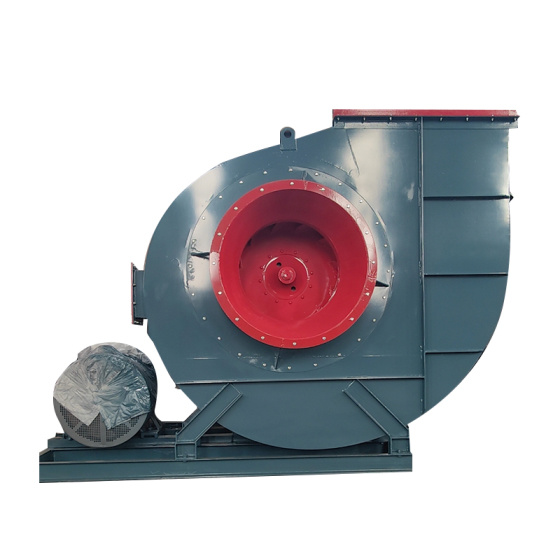

5-15 draft fan

Forced and induced draft fans are usually made in a single-suction type. There are 20 model numbers for N8D~29.5D, totaling 40 specifications. Each fan can also be made in left-hand or right-hand rotation. Viewed from the motor end, the impeller rotates clockwise, which is called a right-hand rotation fan, indicated by “right”; otherwise, it is called a left-hand rotation fan, indicated by “left”. The outlet position of the fan is indicated by the outlet angle of the casing. The fan drive method is type D, i.e., cantilever structure, and the motor and fan are connected by direct drive with an…

Category: Centrifugal Fan

Description
Reviews (0)

Description

This fan is suitable for the induced and forced draft fan system of 2t/h~670t/h steam boilers in thermal power plants. It can also meet the high-pressure head performance parameters of fluidized bed boilers. This series of fans can also be used for dust removal, mine ventilation, and general ventilation systems. This model of fan can be designed as an explosion-proof fan, corrosion-resistant fan, and high-temperature fan according to user requirements, with the same external dimensions as the original model.
