The blower is a single-suction type, usually with 13 models: 24, 4.5, 5, 5.6, 6.3, 7.1, 8, 9, 10, 11.2, 12.5, 14, and 16. Blowers are usually made in two types: right-hand and left-hand rotation. Viewed from the motor end, the impeller rotating clockwise is called a right-hand rotation blower, indicated by “right”, and the impeller rotating counterclockwise is called a left-hand rotation blower, indicated by “left”. The outlet position of the blower is indicated by the outlet angle of the casing. Both “left” and “right” can be made into six angles: 0°, 45°, 90°, 135°, 180°, and 225°. The…

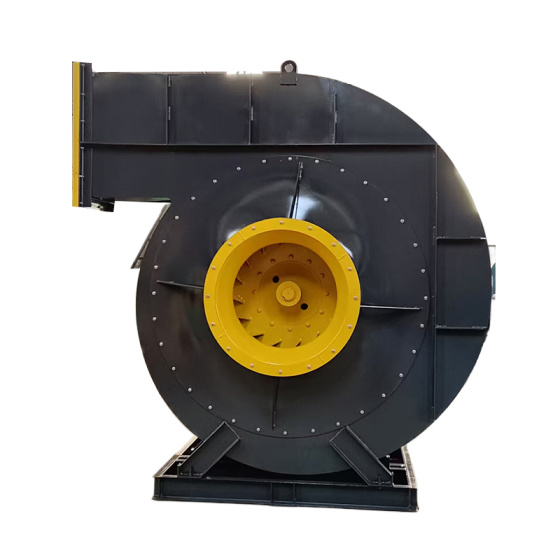

9-19 and 9-26 high-pressure centrifugal blowers are generally used for forging furnaces and high-pressure forced ventilation. They can also be widely used for conveying materials, air, and gases that are non-corrosive, non-self-igniting, non-explosive, non-volatile, and non-viscous. The medium temperature generally does not exceed 50℃ (higher temperature not exceeding 80℃), and the content of dust and hard particles in the medium is not more than 150mg/m³. 3。
