9-19 and 9-26 high-pressure centrifugal fans are generally used for forging furnaces and high-pressure forced ventilation. They can also be widely used for conveying materials, air, and gases that are non-corrosive, non-combustible, non-explosive, non-volatile, and non-viscous. The medium temperature generally does not exceed 50℃ (higher temperature does not exceed 80℃), and the content of dust and hard particles in the medium is not more than 150mg/m³. 3。
Centrifugal Fan

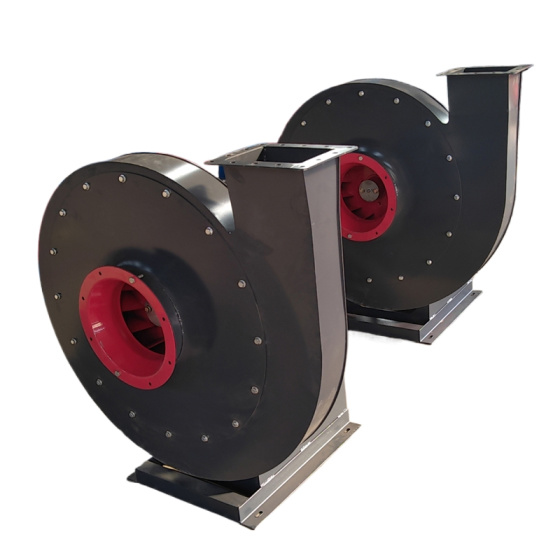

High-pressure centrifugal fan 9-19
Original price was: $80.00.$70.00Current price is: $70.00.
The fan is a single-suction type, usually with 13 models: 24, 4.5, 5, 5.6, 6.3, 7.1, 8, 9, 10, 11.2, 12.5, 14, and 16.
The fan is usually made in two types: right-rotating and left-rotating. Viewed from the motor end, the impeller rotates clockwise, which is called a right-rotating fan, indicated by “right”; counterclockwise rotation is called a left-rotating fan, indicated by “left”.
The outlet position of the fan is indicated by the outlet angle of the casing. Both “left” and “right” can be made into six angles: 0°, 45°, 90°, 135°, 180°, and 225°. The transmission methods of the fan are divided into three types: A (4~6.3), D, and C (7.1~16).
If the above model numbers, rotation direction, outlet angle, and transmission method do not meet your needs, we have the ability to design a customized solution for you until you are satisfied.
